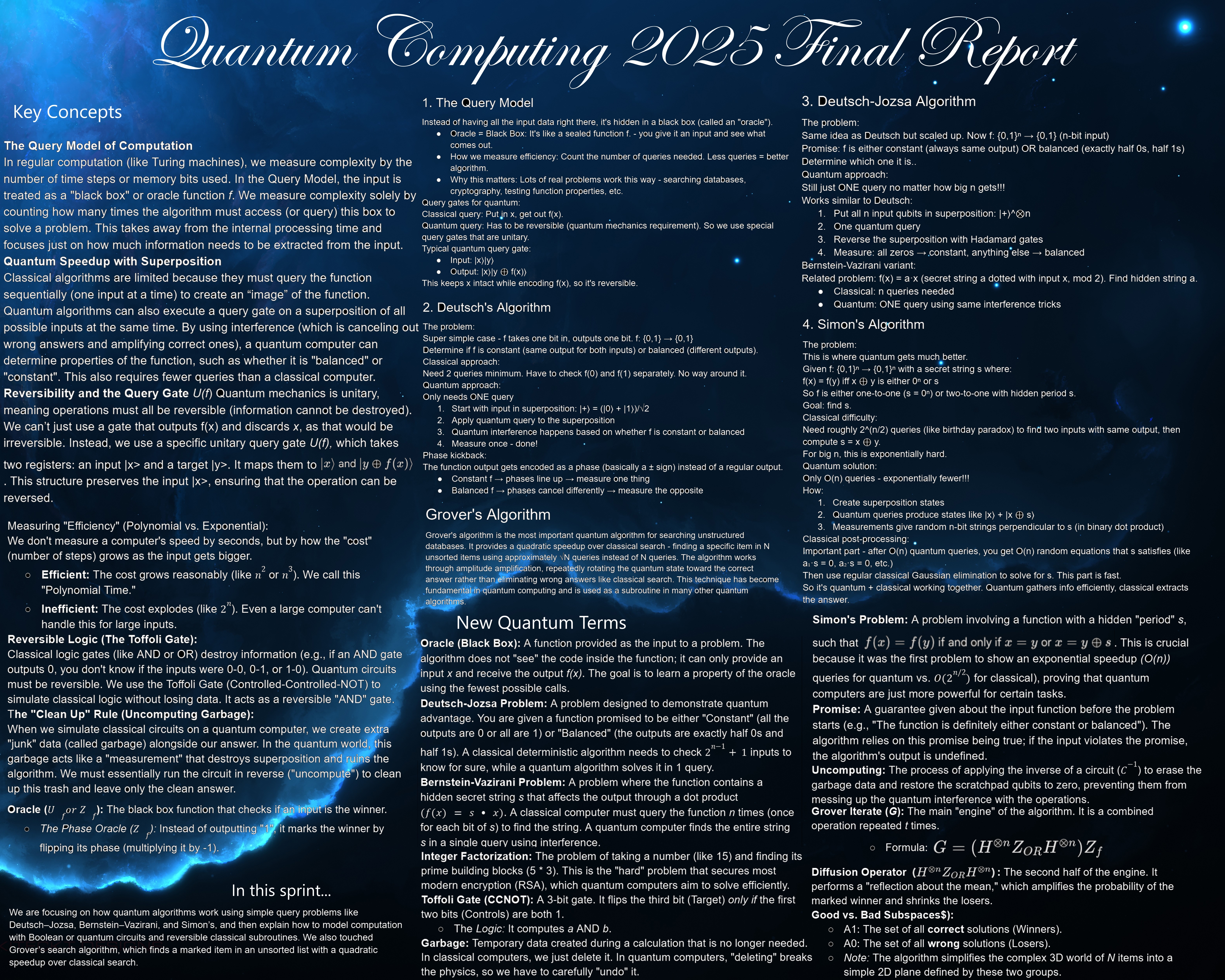

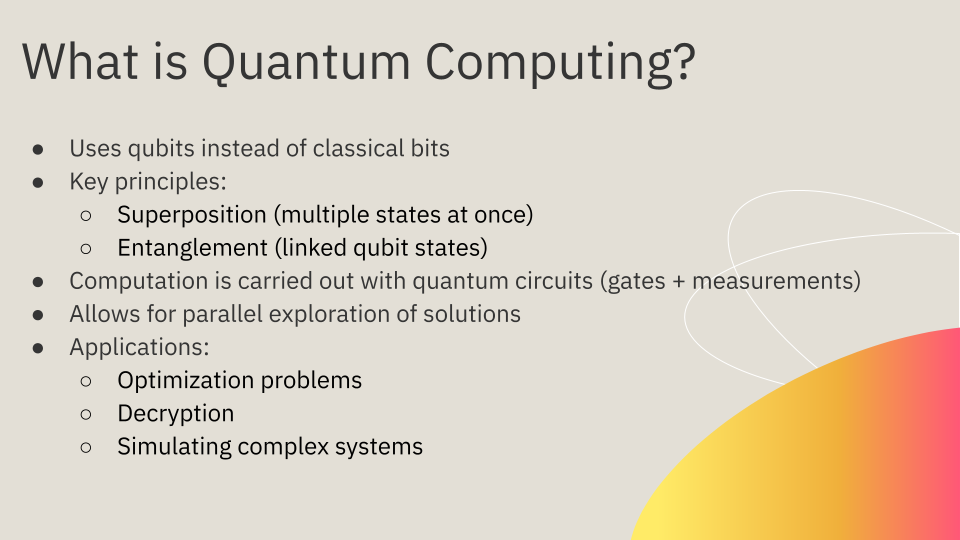

Quantum Computing Capstone Project

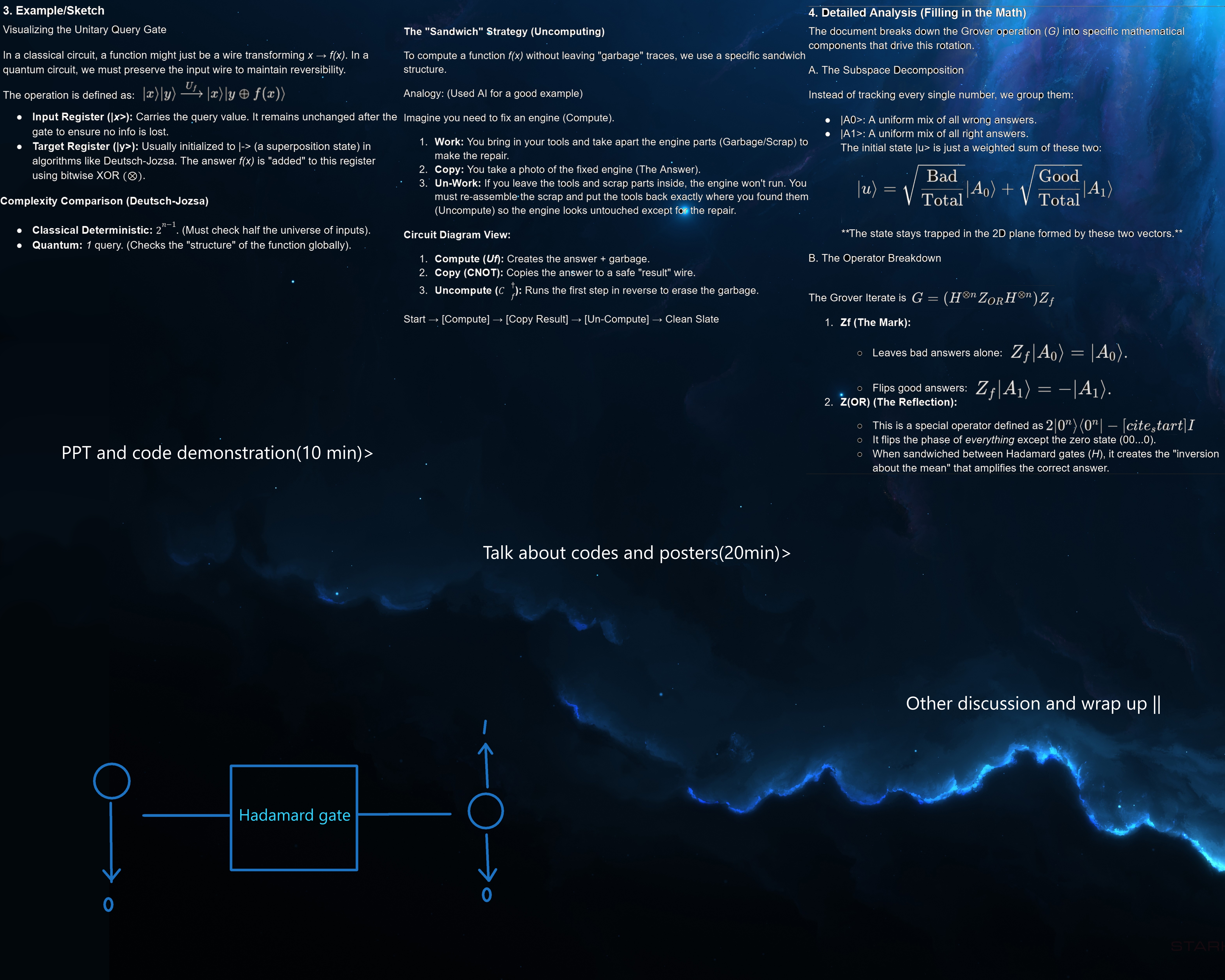

The first task focused on the mathematical foundations of single-qubit quantum gates. We were asked to prove several important identities involving the Hadamard gate and the Pauli matrices, including HXH = Z, HZH = X, HYH = −Y, H† = H, X² = Y² = Z² = I, H = (X + Z)/√2, and H² = I. We also needed to compute tensor products such as σ₁ᶻ ⊗ σ₂ᶻ and σ₁ᶻ ⊗ I ⊗ σ₃ᶻ to understand how operators act in multi-qubit systems.

We solved this task by writing each gate in explicit matrix form and performing direct matrix multiplication. This approach made each identity concrete rather than symbolic. For example, multiplying the Hadamard matrix by X and then by H shows exactly why the basis changes convert X into Z. The same method explains why HZH = X and why conjugating Y by H introduces a negative sign.

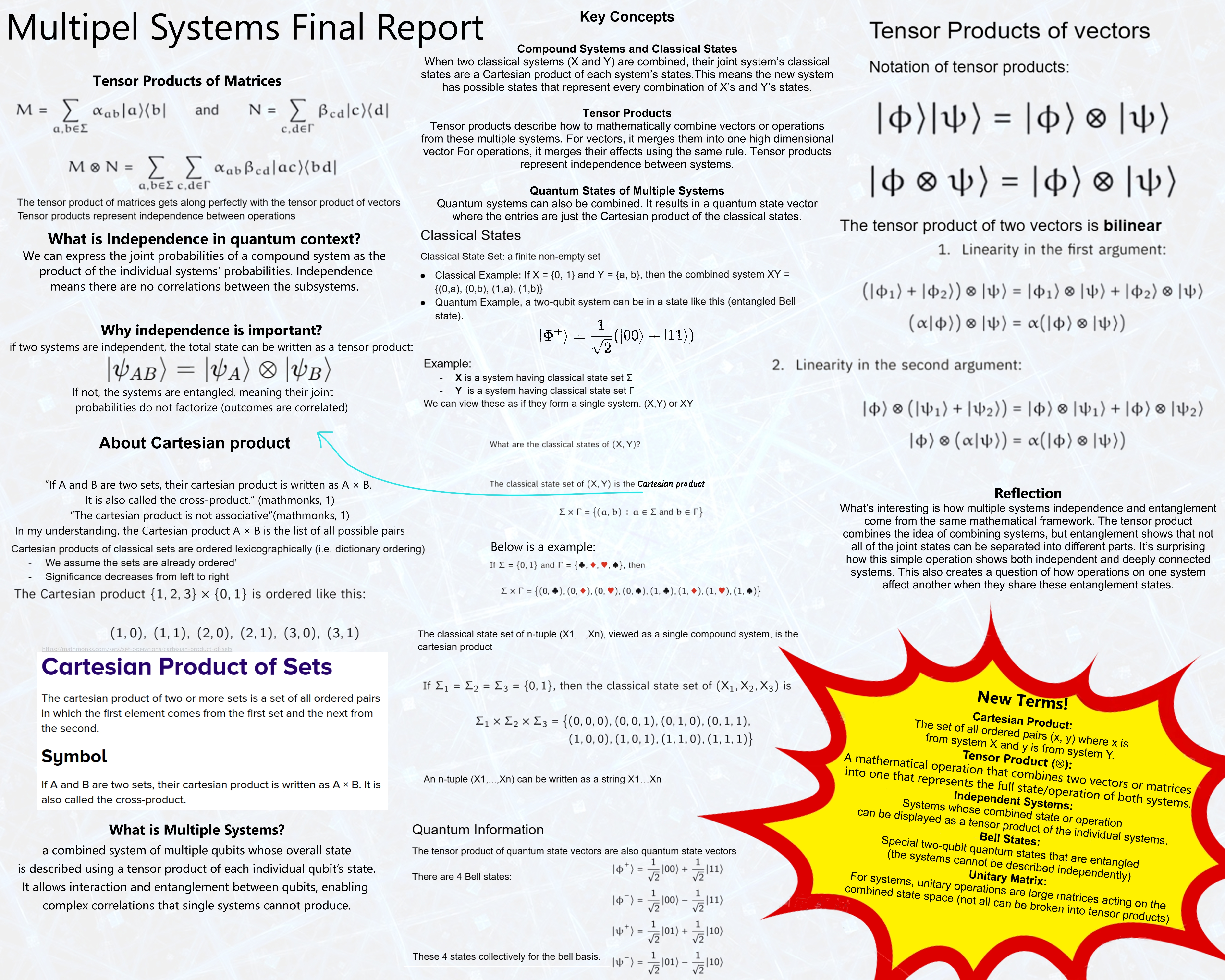

For the tensor product calculations, we used the Kronecker product structure to expand 2×2 matrices into 4×4 and 8×8 matrices. This helped us see how a gate acting on one qubit is embedded into a larger system. Conceptually, this task established the algebra needed later for QAOA, where cost Hamiltonians are built from products of Z operators and where gate identities are used to simplify circuit construction.

• Represent each gate explicitly as a matrix.
• Verify identities through direct multiplication.
• Interpret H as a basis-changing operator between X and Z descriptions.
• Use tensor products to model multi-qubit operators precisely.

This task gave us the mathematical language needed for the rest of the project. QAOA is built from repeated applications of structured quantum operators, so understanding how gates combine, transform, and scale to larger systems is essential before implementing the algorithm in code.

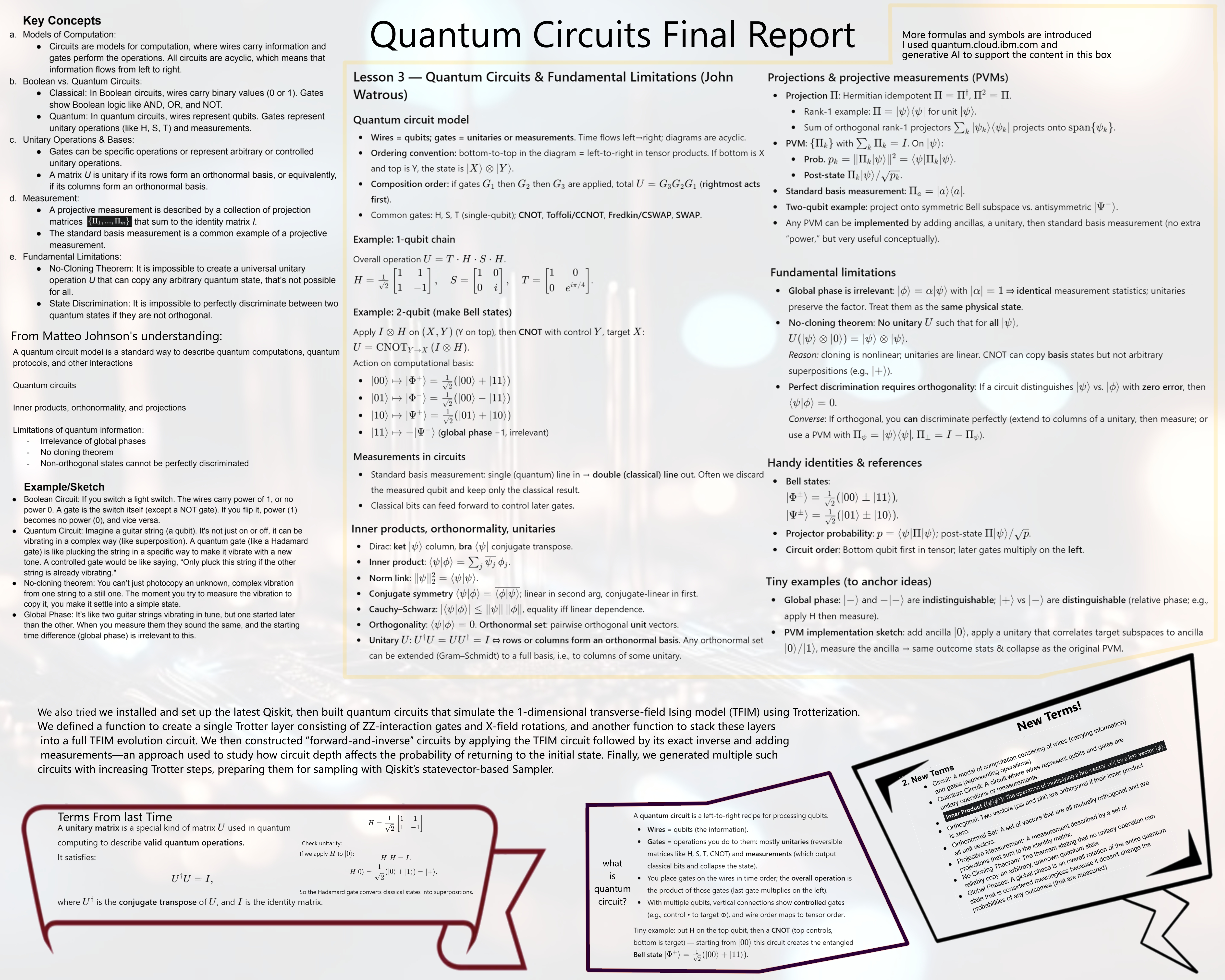

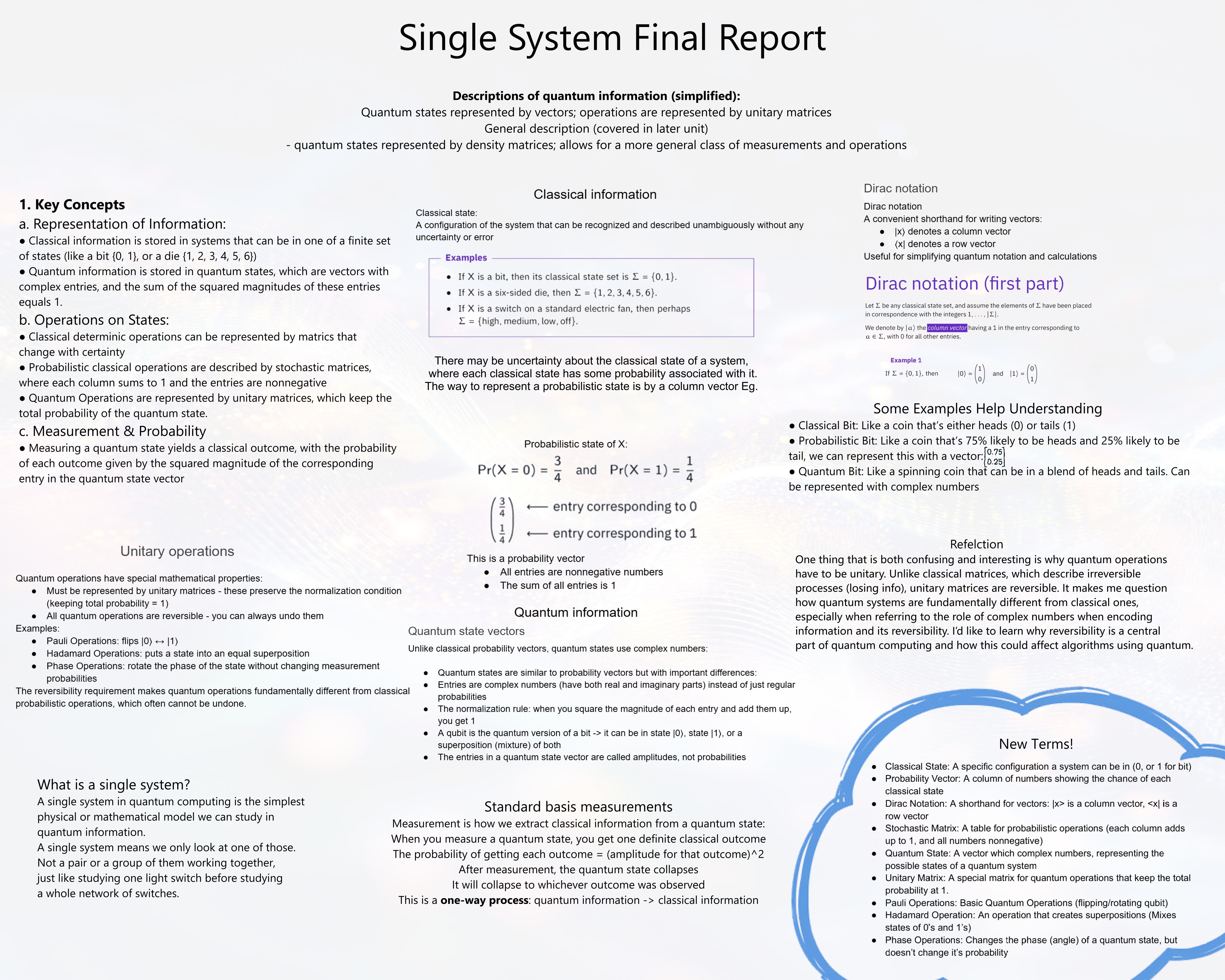

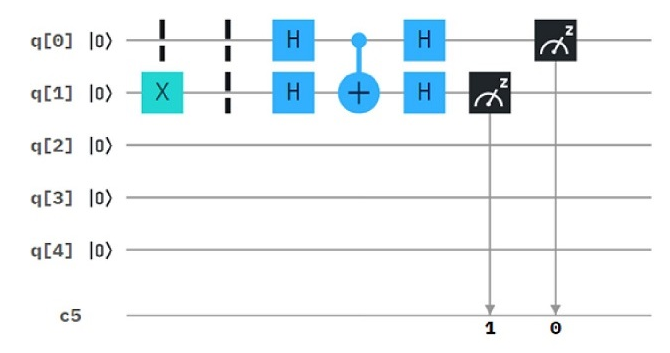

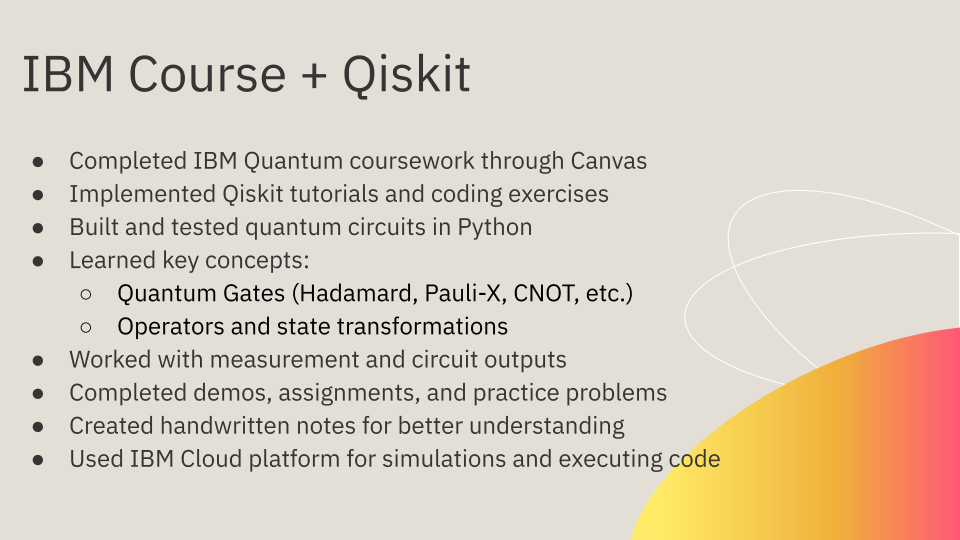

The second task moved from pure gate algebra to actual circuit construction. We were asked to reproduce a small quantum circuit using IBM’s interface, place the correct gates on the correct qubits, and execute it on one of IBM’s quantum backends. The circuit included initialization, gate placement, entangling structure, and final measurement, so the main challenge was understanding both the logical sequence of operations and the physical interpretation of the measured outputs.

We broke the circuit into stages. First, we identified the role of each gate in the diagram and matched the gate placement to the correct qubit lines. Then we constructed the circuit step by step, making sure the control-target relationship of the entangling gate was correct. After that, we added measurement operations and ran the circuit through IBM Quantum tools.

The main idea in solving this task was to treat the circuit as a sequence of state transformations. Rather than simply copying the visual diagram, we asked what each gate was doing to the qubit state at that point. The X gate flips a basis state, the H gates create superposition, the controlled operation introduces correlation between qubits, and the measurement maps the quantum state into classical bits that can be interpreted through counts and outcome frequencies.

• Read the circuit from left to right as a sequence of transformations.
• Map each gate to the correct qubit line and preserve control-target direction.
• Measure the final state and interpret output bitstrings.
• Use the execution results to connect theory with real hardware behavior.

This task was our first complete connection between abstract quantum gates and an executable experiment. It showed how a circuit diagram becomes a runnable object in IBM Quantum and prepared us for later work, where QAOA must also be built as a structured circuit rather than only described mathematically.

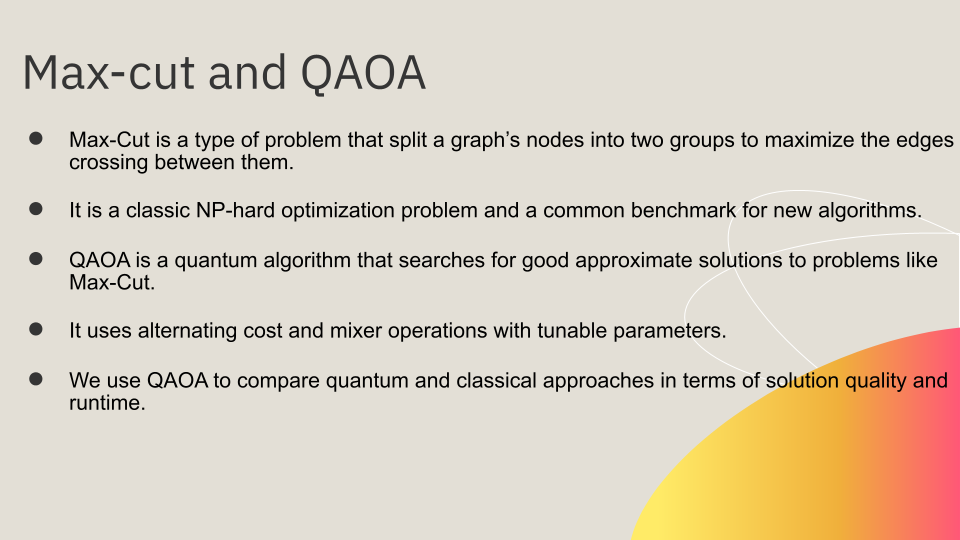

The third task introduced the key operators used in QAOA. We were asked to revisit the definition of the cost unitary U(C,γ) and analyze how it is constructed for Max-Cut from terms of the form C⟨ij⟩ = 1/2 (I − σᶻᵢ ⊗ σᶻⱼ). We then needed to calculate operator expressions such as e^{−iγ(I − σ₁ᶻ ⊗ σ₂ᶻ)} for a two-qubit system and e^{−iγ(I − σ₁ᶻ ⊗ I ⊗ σ₃ᶻ)} for a three-qubit system.

We solved this task by recognizing that these operators are diagonal in the computational basis because they are built from Z-type terms. That means the exponential can be understood through the eigenvalues of the underlying matrix. Once the basis states are identified, each state picks up a phase depending on whether the relevant qubits agree or disagree. This is exactly why the cost operator is useful for Max-Cut: it rewards bitstrings that correspond to edges crossing the cut.

We also connected this mathematics to circuit implementation. In practice, the cost unitary is not left as a symbolic exponential. Instead, it is decomposed into gates that IBM hardware can run, usually through combinations of CNOT gates and Z-rotations. The mixer operator U(B,β) is easier to implement because it is built from X rotations on each qubit. This task therefore served as the bridge between operator notation and real quantum circuits.

• Use Z-basis eigenvalues to evaluate the exponential operators.
• Interpret the resulting phases in terms of Max-Cut edge contributions.
• Understand why cost operators are diagonal and mixer operators are X-based.
• Prepare these operators for later decomposition into universal gates.

This task is the theoretical core of QAOA. It explains where the algorithm’s two alternating layers come from and why they are meaningful. Without this step, implementing QAOA would be mostly code without a clear understanding of the optimization logic behind it.

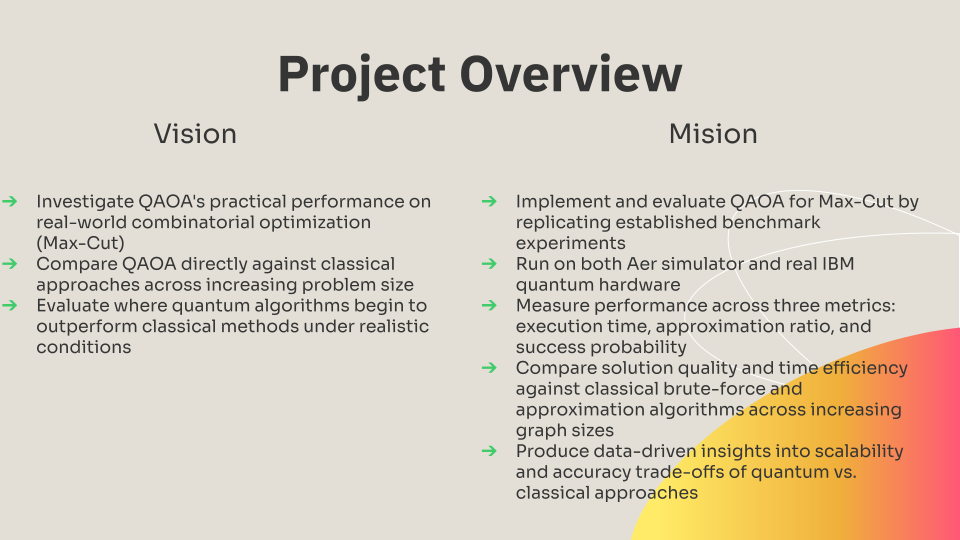

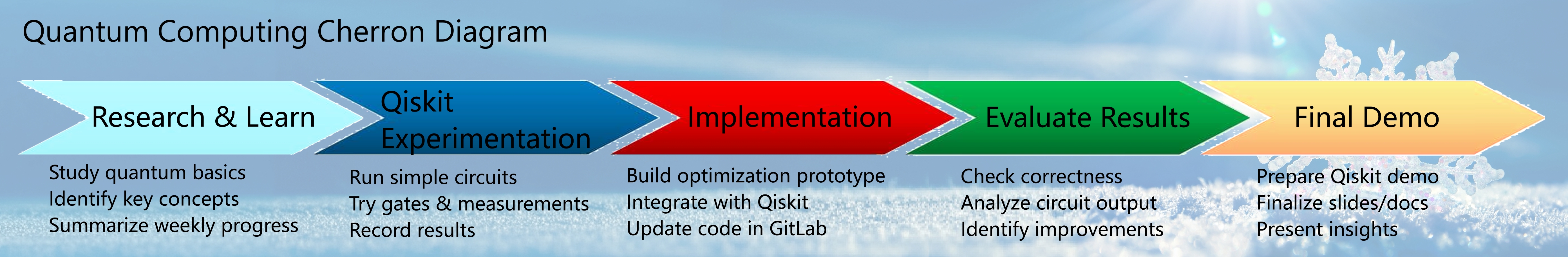

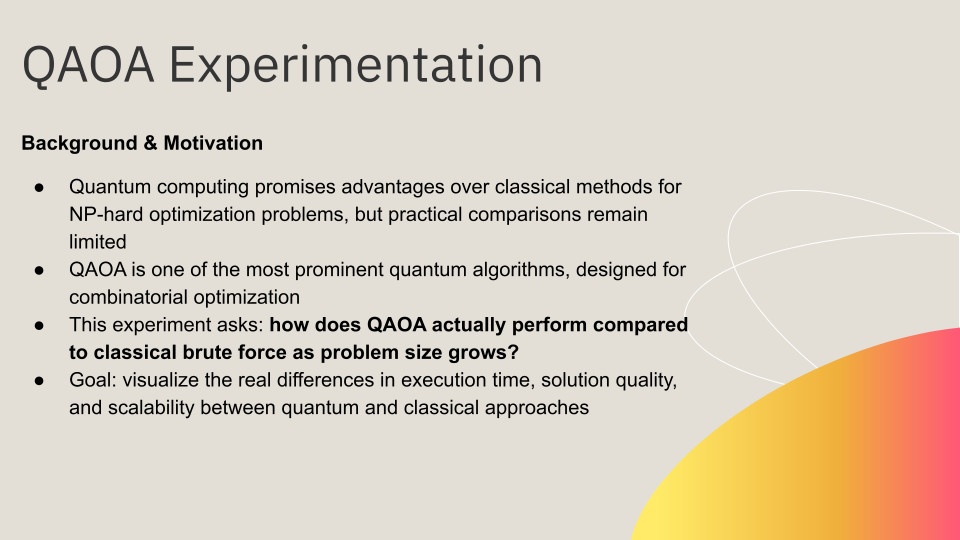

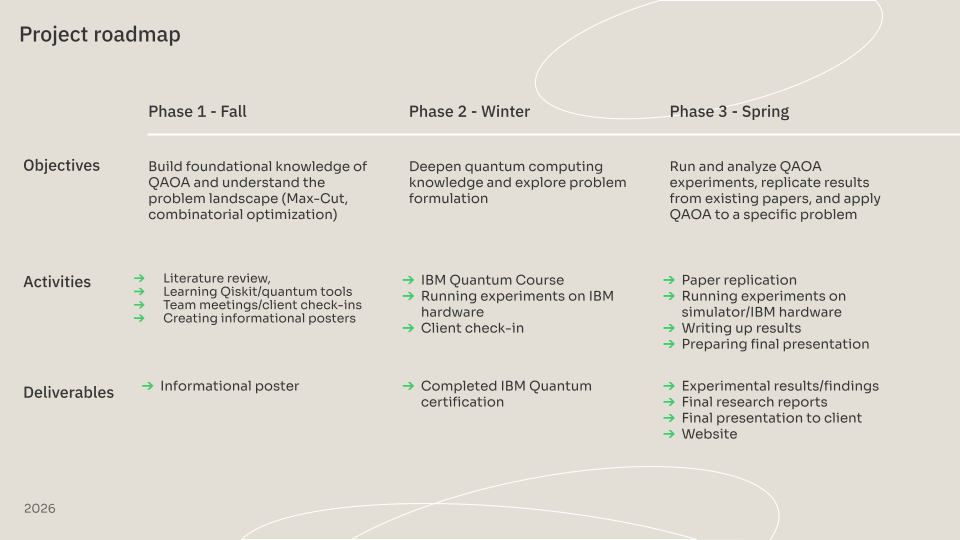

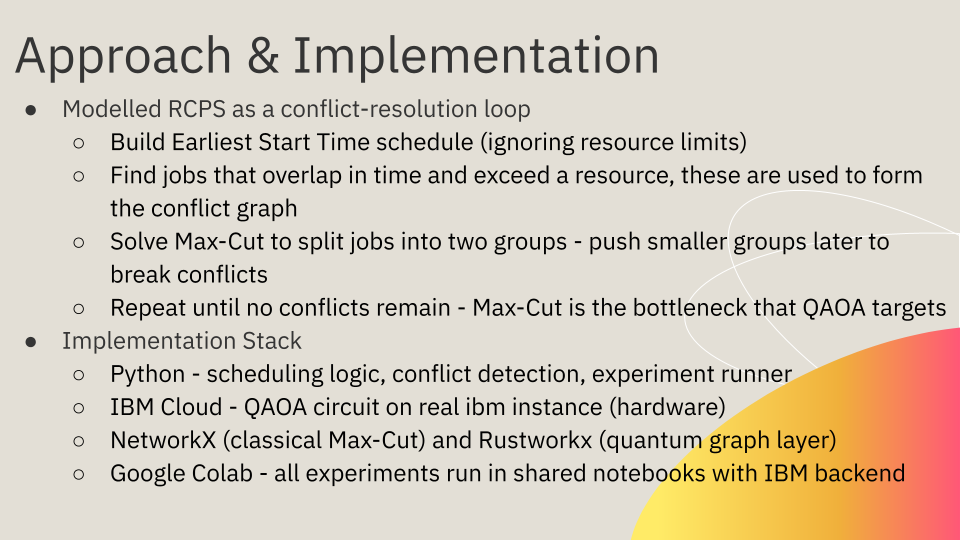

The current task asks us to move from foundational theory to a working algorithm. We need to elaborate the Qiskit code structure for QAOA, explain how U(C,γ) and U(B,β) are built for Max-Cut, discuss how they can be decomposed into universal gates on IBM’s quantum computers, and then implement the algorithm for a small graph and submit the results.

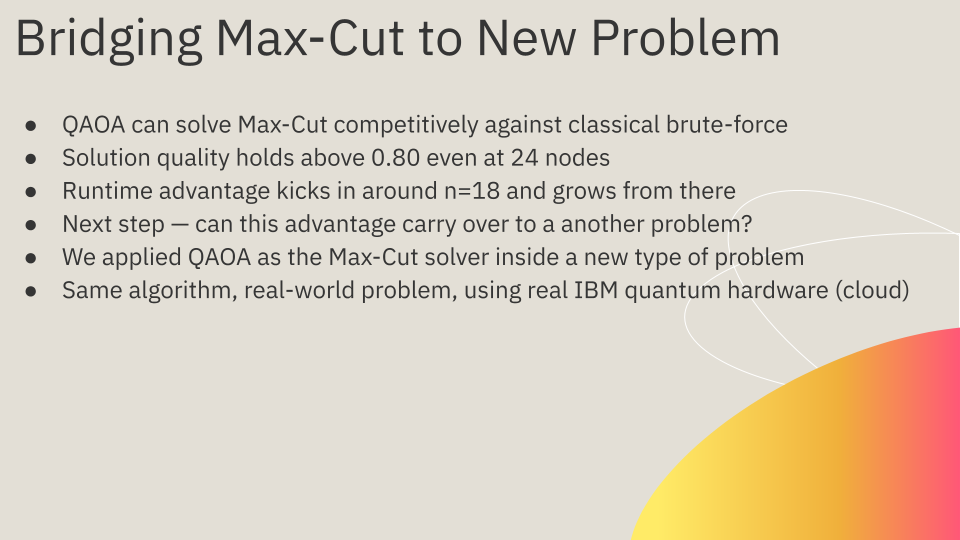

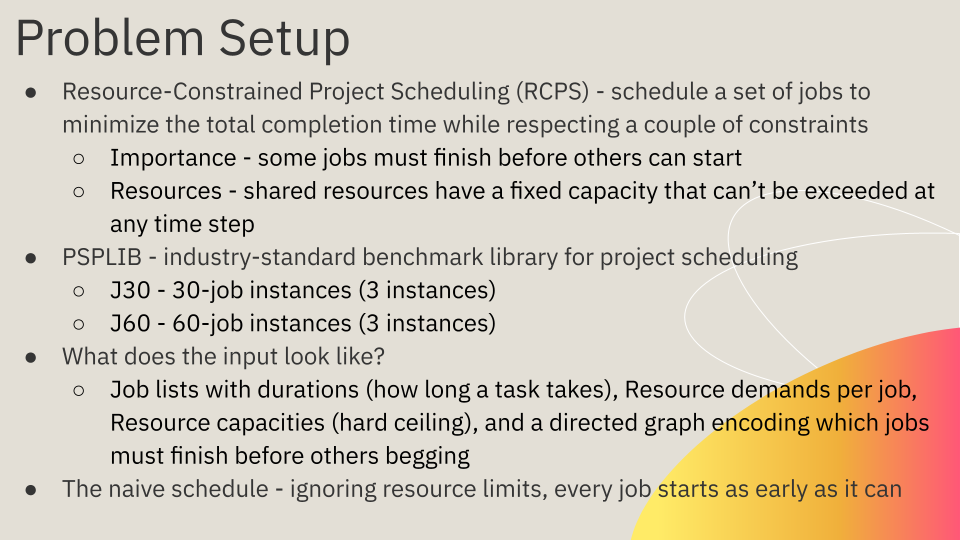

At this stage, we are reviewing literature related to QAOA performance, graph-based optimization, and existing implementation strategies. We have also started identifying benchmark data and small graph instances that are appropriate for testing. This allows us to compare our implementation against known examples and gives us a practical basis for evaluating output quality.

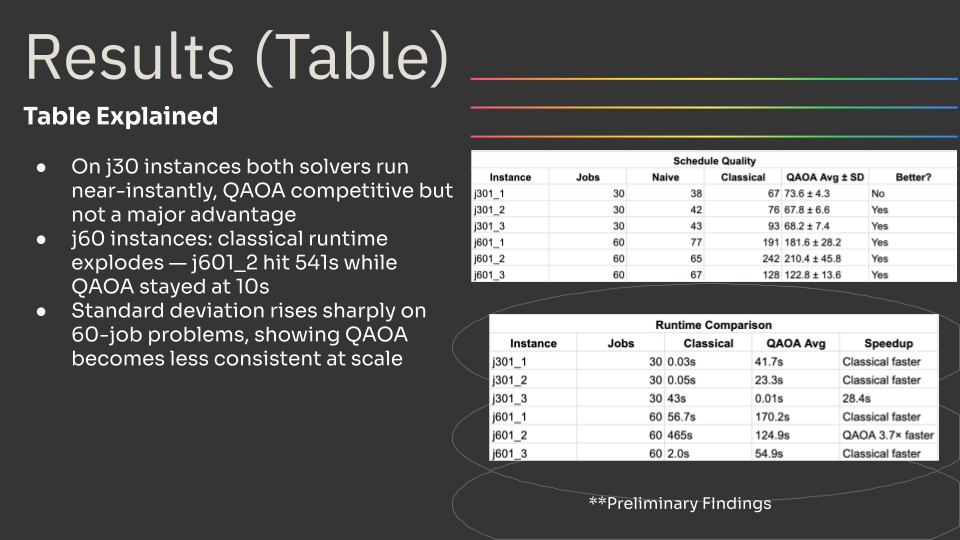

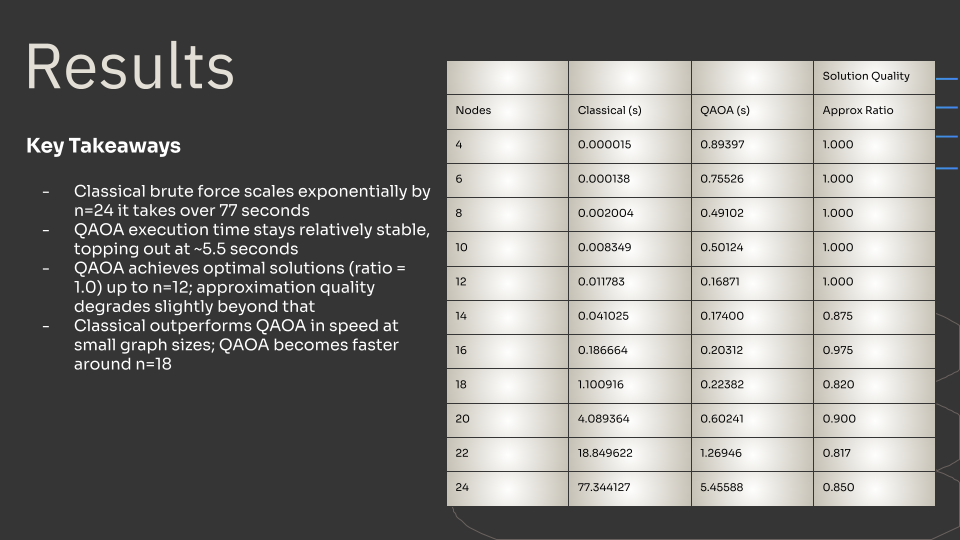

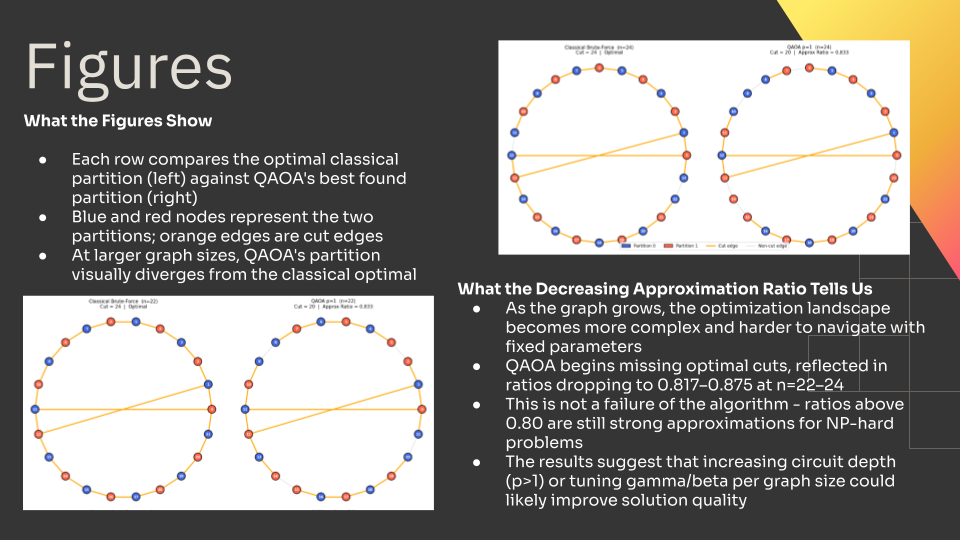

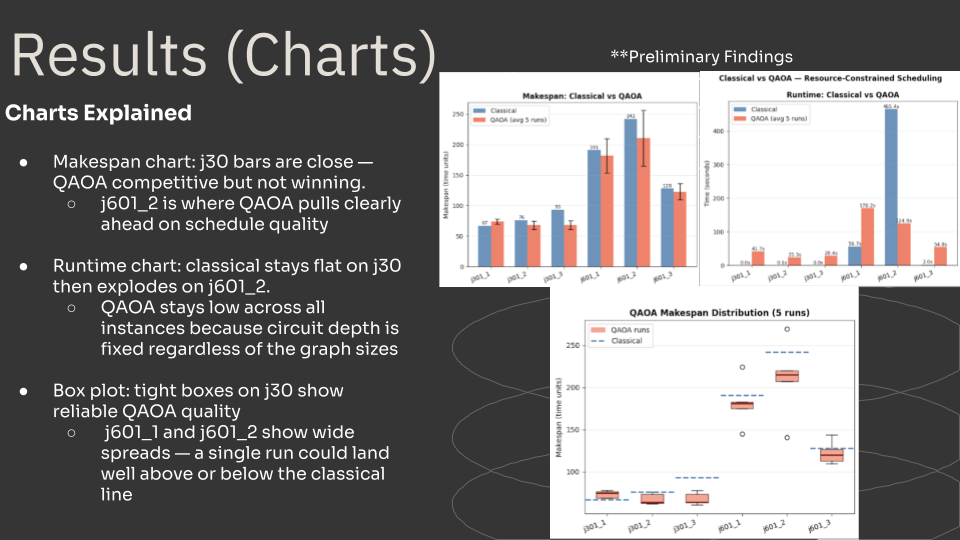

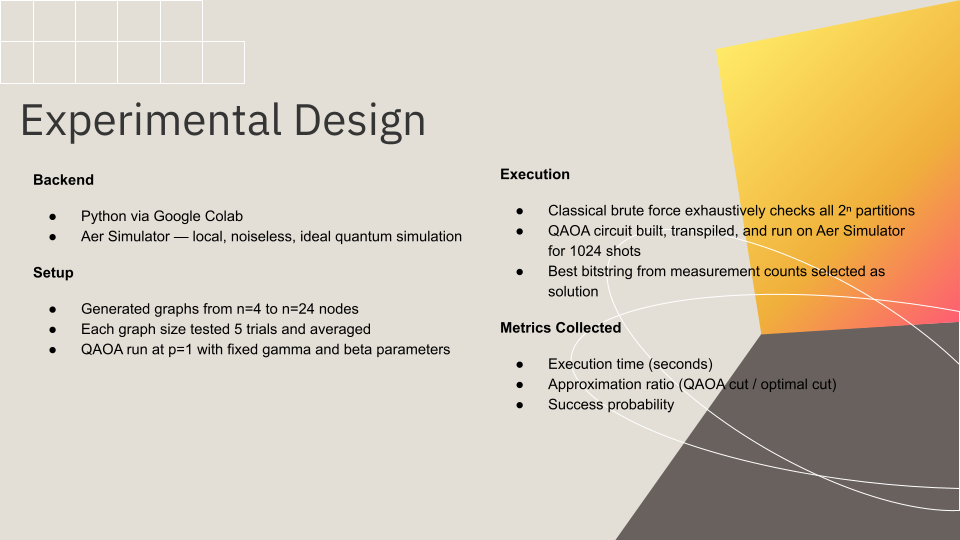

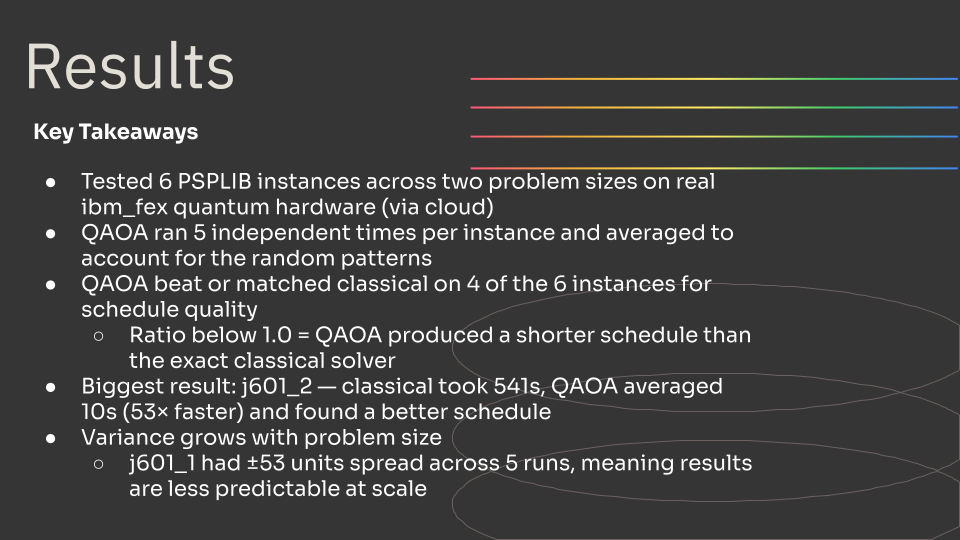

Our next step is to implement the algorithm over the next week and a half. This includes building the circuit layers in Qiskit, selecting initial parameter values, running experiments on simulators, and then comparing measured bitstrings according to their Max-Cut values. As the implementation becomes stable, we will add the results and interpretation back into this website.
